Reflectance-IC scatterplot

Source: R/topo_corr.R
topo_splot.Rd

This function creates a scatterplot of surface reflectance vs. illumination condition (IC). The plot can be used to explore the dependency of the original and the topographically-corrected surface reflectance data on IC.

Usage

topo_splot(IC, band, maxcell = 1e+05)

Arguments

IC

SpatRaster. Illumination condition.

band

SpatRaster. Spectral band to be processed.

maxcell

positive integer. Maximum number of cells to use for the plot

See also

topo_corr(), graphics::abline(), stats::lm()

Examples

outline <- system.file("extdata/athabasca_outline.shp", package = "SatRbedo")
nir <- system.file("extdata/athabasca_B8A_20200911.tif", package = "SatRbedo")
dem <- system.file("extdata/athabasca_dem.tif", package = "SatRbedo")
nir <- preproc(grd = nir, outline = outline)
dem <- preproc(grd = dem, outline = outline)
SAA <- 164.8
SZA <- 48.9
corr <- topo_corr(band = nir, dem = dem, SAA = SAA, SZA = SZA, method = "tanrotation")

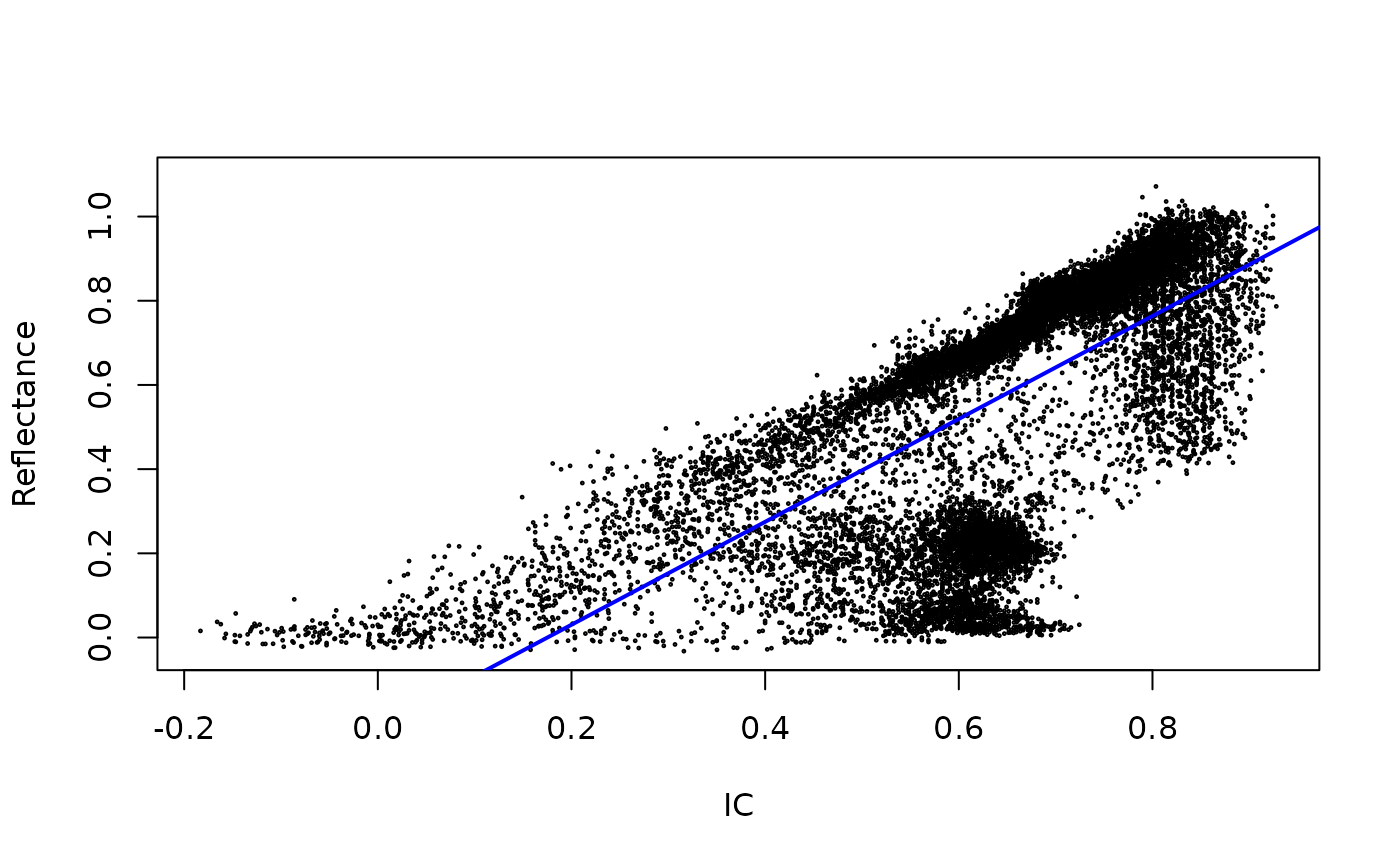

# Scatterplot of IC vs. uncorrected surface reflectance
topo_splot(corr$bands[[1]], nir)

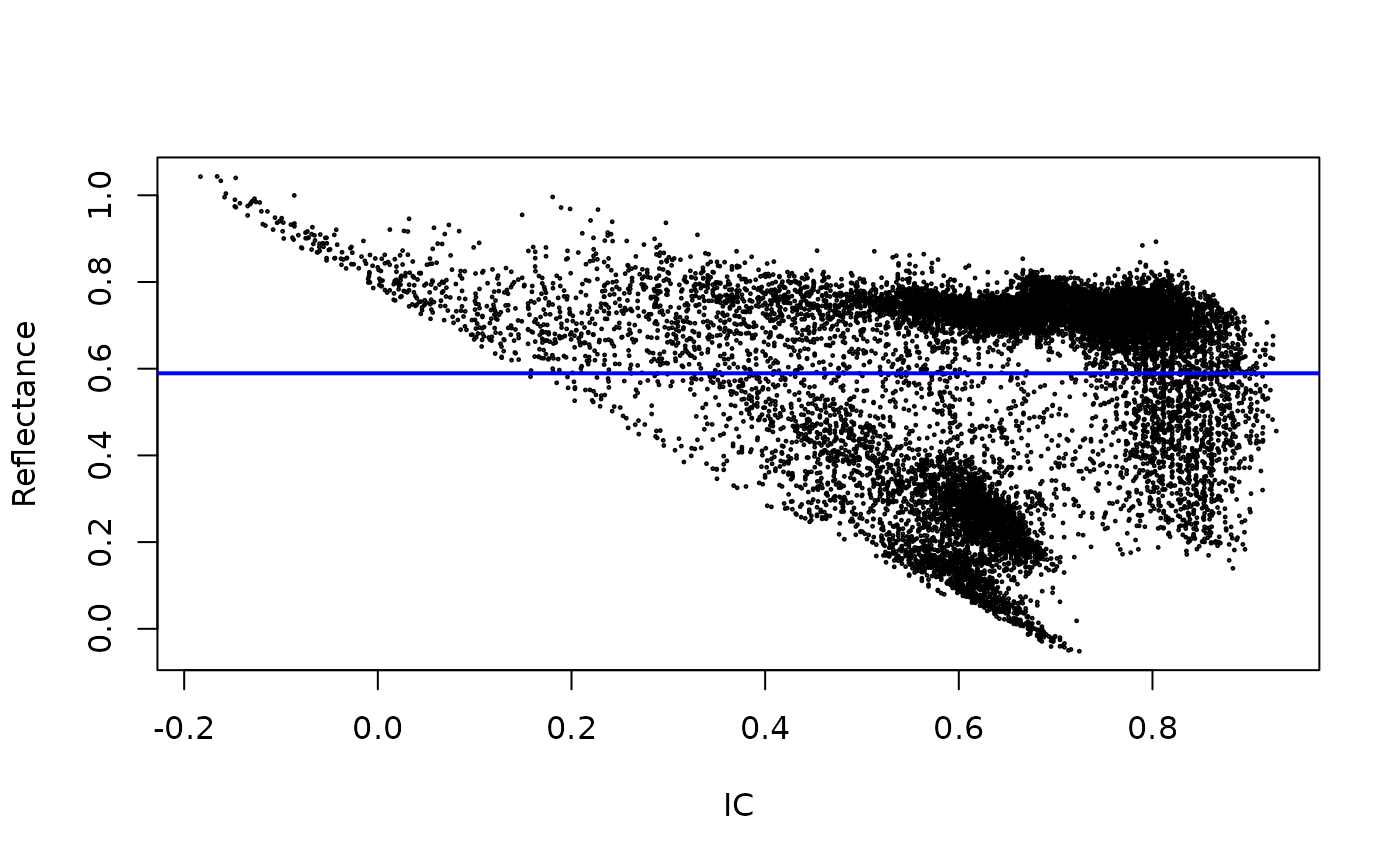

# Scatterplot of IC vs. topographically-corrected surface reflectance
topo_splot(corr$bands[[1]], corr$bands[[2]])
