SatRbedo

The SatRbedo package consists of a set of tools for retrieving snow and ice albedo from optical satellite imagery (e.g., Landsat and Sentinel-2). SatRbedo functions require the following datasets:

  • Atmospherically corrected surface reflectance (gridded).
  • Satellite (φv\varphi_v, θv\theta_v) and solar (φs\varphi_s, θs\theta_s) azimuth and zenith angles (numeric or gridded).
  • A digital elevation model (DEM) (gridded).
  • An outline of the area of interest (shapefile).

The package includes tools for:

  • Image pre-processing: crop grids to a specified extent, project grids with different coordinate systems, and convert data from integer to floating point.
  • Convert nadir satellite observations to off-nadir values using view-angle corrections.
  • Detect and mask topographic shadows.
  • Automatic discrimination of snow and ice surfaces.
  • Anisotropic correction of reflected radiation of glacier snow and ice using empirical parameterizations of the bidirectional reflectance distribution function (BRDF).
  • Topographic correction.
  • Narrow-to-broadband albedo conversion.

Installation

You can install the development version of SatRbedo from GitHub with:

# install.packages("devtools")
devtools::install_github("pabl1t0x/SatRbedo")

Getting Started

Snow and ice albedo retrieval from satellite imagery is a four-step workflow that includes image pre-processing, topographic and anisotropic corrections, and a narrow-to-broadband albedo conversion (Fig. 1).

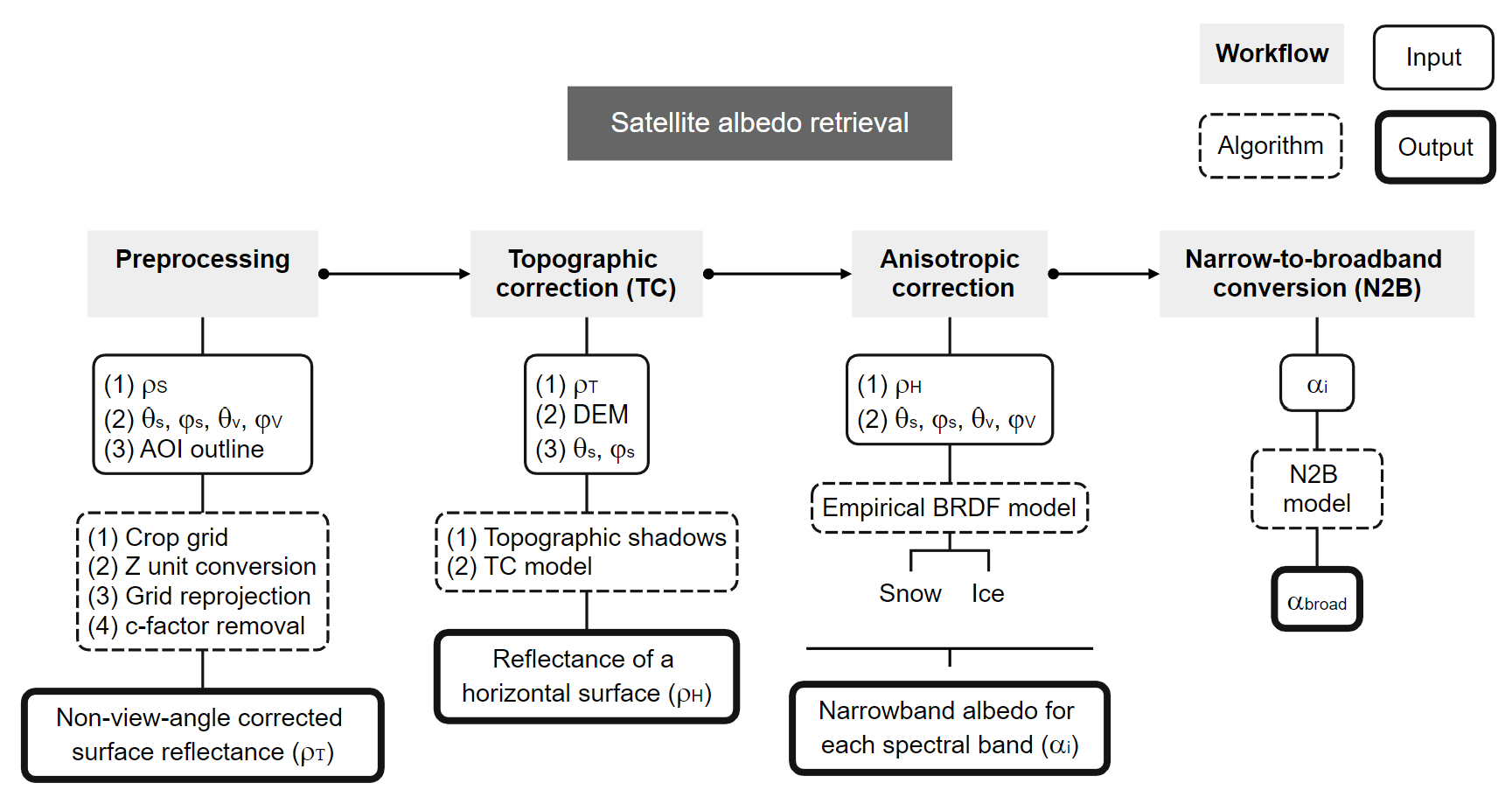

Fig. 1 Flowchart of the satellite albedo retrieval workflow

Fig. 1 Flowchart of the satellite albedo retrieval workflow

The following example shows how to estimate albedo using surface reflectance data from five spectral bands at the Athabasca Glacier in Canada on 11 September 2020.

Step 1: Load the data for the area of interest

# Load the packages
library(SatRbedo)
library(terra)
#> terra 1.8.54

# Load the raw Sentinel-2 surface reflectance data
# Note: each spectral band was previously cut out to the extent of the area of interest and renamed
blue_SR <- system.file("extdata/athabasca_B02_20200911.tif", package = "SatRbedo") # blue band surface reflectance
green_SR <- system.file("extdata/athabasca_B03_20200911.tif", package = "SatRbedo") # green band surface reflectance
red_SR <- system.file("extdata/athabasca_B04_20200911.tif", package = "SatRbedo") # red band surface reflectance
NIR_SR <- system.file("extdata/athabasca_B8A_20200911.tif", package = "SatRbedo") # near-infrared band surface reflectance
SWIR1_SR <- system.file("extdata/athabasca_B11_20200911.tif", package = "SatRbedo") # shortwave-infrared band 1 surface reflectance
SWIR2_SR <- system.file("extdata/athabasca_B12_20200911.tif", package = "SatRbedo") # shortwave-infrared band 2 surface reflectance

# Load the DEM and the outline
# Note: the DEM was re-projected to the extent of the area of interest
dem <- system.file("extdata/athabasca_dem.tif", package = "SatRbedo")
outline <- system.file("extdata/athabasca_outline.shp", package = "SatRbedo")

Step 2: Data pre-processing

# Transform the input data to SpatRaster and crop to the area of interest
dem <- terra::rast(dem)
blue <- preproc(grd = blue_SR, outline = outline)
green <- preproc(grd = green_SR, outline = outline)
red <- preproc(grd = red_SR, outline = outline)
nir <- preproc(grd = NIR_SR, outline = outline)
swir1 <- preproc(grd = SWIR1_SR, outline = outline)
swir2 <- preproc(grd = SWIR2_SR, outline = outline)

Step 3: Topographic correction

SAA <- 164.8 # solar azimuth angle
SZA <- 48.9 # solar zenith angle
blue_corr <- topo_corr(blue, dem, SAA, SZA)
green_corr <- topo_corr(green, dem, SAA, SZA)
red_corr <- topo_corr(red, dem, SAA, SZA)
nir_corr <- topo_corr(nir, dem, SAA, SZA)
swir1_corr <- topo_corr(swir1, dem, SAA, SZA)
swir2_corr <- topo_corr(swir2, dem, SAA, SZA)

Step 4: Estimation of broadband albedo after anisotropic correction

SAA <- 164.8 # solar azimuth angle
SZA <- 48.9 # solar zenith angle
VAA <- 90.9 # view azimuth angle
VZA <- 5.2 # view zenith angle
slope <- terra::terrain(dem, v = "slope", neighbors = 4, unit = "degrees")
aspect <- terra::terrain(dem, v = "aspect", neighbors = 4, unit = "degrees")
threshold <- snow_or_ice(green, nir)$th # threshold used to discriminate between snow and ice
broadband_albedo <- albedo_sat(
  SAA, SZA, VAA, VZA,
  slope, aspect, method = "fivebands",
  blue = blue_corr$bands[[2]], green = green_corr$bands[[2]], red = red_corr$bands[[2]],
  NIR = nir_corr$bands[[2]], SWIR1 = swir1_corr$bands[[2]], SWIR2 = swir2_corr$bands[[2]],
  th = threshold
)
# Plot the results
plot(broadband_albedo[[6]])

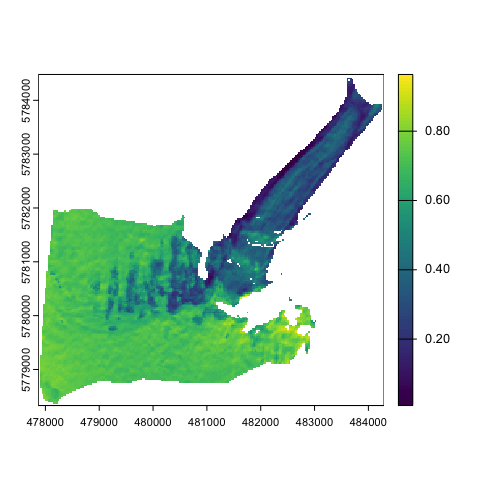

Fig. 2 Broadband albedo

Fig. 2 Broadband albedo

Citing

Please cite SatRbedo using:

@Manual{,
  title = {SatRbedo: An R package for retrieving snow and ice albedo from optical satellite imagery},
  author = {Pablo Fuchs and Ruzica Dadic and Shelley MacDonell and Heather Purdie and Brian Anderson and Marwan Katurji},
  year = {2025},
  note = {R package version 1.0},
  url = {https://github.com/pabl1t0x/SatRbedo},
}

License

This project is licensed under the terms of the GNU General Public License v3.0. See LICENSE for more details.
